宇树机器人G1便携开发指北：基于树莓派的环境搭建

引言

如果要调试 unitree-g1-edu 机器人的话，

肯定是看过他们的官方文档的。

快速开发文档在这里：

G1_developer/快速开发

环境要求倒没撒，基于Ubuntu 20.04 or 22.04,

装上依赖库，

基本是有手就能行的操作。

只是，

如果你想去调试一下G1机器人的话，

官方的方案是，大概是这样的。

演示视频。

拖一根网线从G1机器人颈部网口接入，连接到你的Ubuntu主机
给Ubuntu主机网络设定固定IP, 通过lan口做网络通讯

大概如下：

1
2
3
4
5
6

建议新用户使用网线与转接线将用户计算机接入 G1 交换机，

并将与机器人通信的网卡设置在 192.168.123.X 网段下，

推荐使用 192.168.123.99。

倒没什么问题，只是拖着一个网线，怎么看都是麻烦。

有什么别的办法么？

思索了一下，直接用“树莓派”做个主控机器连接G1网络，

同时树莓派连接到本地局域网，

那不就可以直接远程是操控机器了？

又研究了一下，G1-EDU网卡旁边还有三个供电口，

分别是12V 、 24V 、 48V，

也足够给树莓派供电了（树莓派是5V，买个电压转换器即可）。

就这个电压，给更多的设备供电也没什么问题。

例如：灵巧手？很是有趣了。

“树莓派” 硬件环境准备

转压器(EVEPS直流降压器) + 电源线，

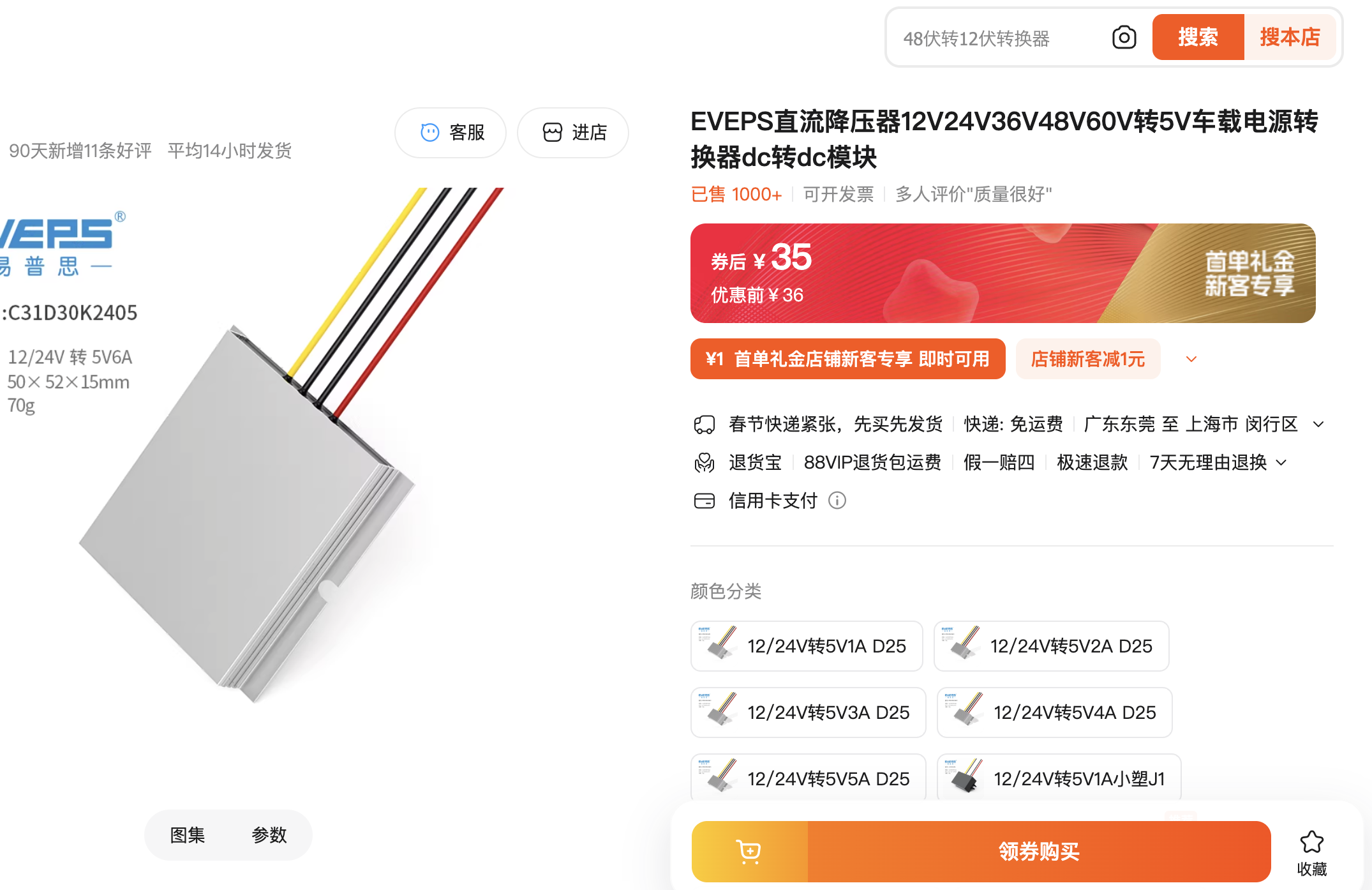

EVEPS直流降压器

电源线

加起来三十来块搞掂，

淘宝直接买就可以。

3M胶布固定“树莓派”到机器背面，电源线接上去，

网线从脖子后面出来，接到树莓派上面，

最后，套一个衣服到G1上面，

一切都可以藏起来了。

Python 动作调试

本地先把他们家的unitree_sdk2py装好，

然后就可以试试调试一下G1了~

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
import time
import sys
from unitree_sdk2py.core.channel import ChannelSubscriber, ChannelFactoryInitialize
from unitree_sdk2py.g1.arm.g1_arm_action_client import G1ArmActionClient
from unitree_sdk2py.g1.arm.g1_arm_action_client import action_map
from dataclasses import dataclass

@dataclass
class TestOption:
    name: str
    id: int

option_list = [
    TestOption(name="release arm", id=0),
    TestOption(name="shake hand", id=1),
    TestOption(name="high five", id=2),
    TestOption(name="hug", id=3),
    TestOption(name="high wave", id=4),
    TestOption(name="clap", id=5),
    TestOption(name="face wave", id=6),
    TestOption(name="left kiss", id=7),
    TestOption(name="heart", id=8),
    TestOption(name="right heart", id=9),
    TestOption(name="hands up", id=10),
    TestOption(name="x-ray", id=11),
    TestOption(name="right hand up", id=12),
    TestOption(name="reject", id=13),
    TestOption(name="right kiss", id=14),
    TestOption(name="two-hand kiss", id=15),

]

class UserInterface:
    def __init__(self):
        self.test_option_ = None

    def convert_to_int(self, input_str):
        try:
            return int(input_str)
        except ValueError:
            return None

    def terminal_handle(self):
        input_str = input("Enter id or name: \n")

        if input_str == "list":
            self.test_option_.name = None
            self.test_option_.id = None
            for option in option_list:
                print(f"{option.name}, id: {option.id}")
            return

        for option in option_list:
            if input_str == option.name or self.convert_to_int(input_str) == option.id:
                self.test_option_.name = option.name
                self.test_option_.id = option.id
                print(f"Test: {self.test_option_.name}, test_id: {self.test_option_.id}")
                return

        print("No matching test option found.")

def shake_hand(network_interface):
    ChannelFactoryInitialize(0, network_interface)
    armAction_client = G1ArmActionClient()
    armAction_client.SetTimeout(10.0)
    armAction_client.Init()
    time.sleep(0.5)
    armAction_client.ExecuteAction(action_map.get("shake hand"))
    time.sleep(2)
    armAction_client.ExecuteAction(action_map.get("release arm"))
    print("Shaked hand and released arm.")

def release_arm(network_interface):
    ChannelFactoryInitialize(0, network_interface)
    armAction_client = G1ArmActionClient()
    armAction_client.SetTimeout(10.0)
    armAction_client.Init()
    time.sleep(0.5)
    result = armAction_client.ExecuteAction(action_map.get("release arm"))
    print(f"Released arm with result: {result}")


if __name__ == "__main__":
    if len(sys.argv) < 2:
        print(f"Usage: python3 {sys.argv[0]} networkInterface")
        sys.exit(-1)

    print("WARNING: Please ensure there are no obstacles around the robot while running this example.")
    input("Press Enter to continue...")

    ChannelFactoryInitialize(0, sys.argv[1])

    test_option = TestOption(name=None, id=None)
    user_interface = UserInterface()
    user_interface.test_option_ = test_option

    armAction_client = G1ArmActionClient()
    armAction_client.SetTimeout(10.0)
    armAction_client.Init()


    # actionList = armAction_client.GetActionList()
    # print("actionList\n",actionList)

    print("Input \"list\" to list all test option ...")
    while True:
        user_interface.terminal_handle()

        print(f"Updated Test Option: Name = {test_option.name}, ID = {test_option.id}")

        if test_option.id == 0:
            armAction_client.ExecuteAction(action_map.get("release arm"))
        elif test_option.id == 1:
            armAction_client.ExecuteAction(action_map.get("shake hand"))
            time.sleep(2)
            armAction_client.ExecuteAction(action_map.get("release arm"))
        elif test_option.id == 2:
            armAction_client.ExecuteAction(action_map.get("high five"))
            time.sleep(2)
            armAction_client.ExecuteAction(action_map.get("release arm"))
        elif test_option.id == 3:
            armAction_client.ExecuteAction(action_map.get("hug"))
            time.sleep(2)
            armAction_client.ExecuteAction(action_map.get("release arm"))
        elif test_option.id == 4:
            armAction_client.ExecuteAction(action_map.get("high wave"))
        elif test_option.id == 5:
            armAction_client.ExecuteAction(action_map.get("clap"))
        elif test_option.id == 6:
            armAction_client.ExecuteAction(action_map.get("face wave"))
        elif test_option.id == 7:
            armAction_client.ExecuteAction(action_map.get("left kiss"))
        elif test_option.id == 8:
            armAction_client.ExecuteAction(action_map.get("heart"))
            time.sleep(2)
            armAction_client.ExecuteAction(action_map.get("release arm"))
        elif test_option.id == 9:
            armAction_client.ExecuteAction(action_map.get("right heart"))
            time.sleep(2)
            armAction_client.ExecuteAction(action_map.get("release arm"))
        elif test_option.id == 10:
            armAction_client.ExecuteAction(action_map.get("hands up"))
            time.sleep(2)
            armAction_client.ExecuteAction(action_map.get("release arm"))
        elif test_option.id == 11:
            armAction_client.ExecuteAction(action_map.get("x-ray"))
            time.sleep(2)
            armAction_client.ExecuteAction(action_map.get("release arm"))
        elif test_option.id == 12:
            armAction_client.ExecuteAction(action_map.get("right hand up"))
            time.sleep(2)
            armAction_client.ExecuteAction(action_map.get("release arm"))
        elif test_option.id == 13:
            armAction_client.ExecuteAction(action_map.get("reject"))
            time.sleep(2)
            armAction_client.ExecuteAction(action_map.get("release arm"))
        elif test_option.id == 14:
            armAction_client.ExecuteAction(action_map.get("right kiss"))
        elif test_option.id == 15:
            armAction_client.ExecuteAction(action_map.get("two-hand kiss"))

        time.sleep(1)
